美國力科 LeCroy Wavepro 7Zi-A示波器從1.5GHz到6GHz，在保證信號保真度的同時，極大提升了各個方面的處理速度,每個通道同時具備50Ω和1MΩ輸入,輸入通道配有高速前端放大器和模數轉換器。X-Stream II 流線式處理結構使長存儲下的處理速度優于其他類型示波器10-20倍。力科 LeCroy Wavepro 7Zi-A示波器具備靈活而有深度的分析工具箱，將會在調試，驗證，分析和一致性性測試方面給測試者留下難忘的經歷。
探測限制自由
力科 LeCroy Wavepro 7Zi-A示波器擅長提供的通用工具，在其他廠家的1.5GHz到6GHz示波器上難見蹤影。WavePro7Zi系列示波器包含可選的50Ω和1MΩ輸入功能。 4GHz和6 GHz型號包括ProBus和Prolink輸入接口，這意味著可連接8個探頭，然后通過儀器面板或遙控的方式從這8個探頭中選擇。這樣即使使用4GHz到6GHz型號也能很容易連接一個無源探頭，并很容易找到一個1MΩ輸入適配器。另外，任何已經購買的力科探頭，如電流探頭，單端或差分有源探頭，高壓探頭，都可繼續在WavePro7Zi上使用。
力科 LeCroy Wavepro 7Zi-A示波器提供更多的觸發方式來高效定位問題
高帶寬邊沿觸發，以及10個不同的SMART 觸發，幫助你迅速定位問題。大多數SMART觸發可以觸發低至200ps的脈沖。高速串行觸發可觸發高達2.7 Gb / s的多達80位長度的串行序列，包括了內置的硬件時鐘恢復模塊。
力科 LeCroy Wavepro 7Zi-A示波器采用高速硬件觸發與余輝顯示來捕獲感興趣的信號，并提供比其它方法快100倍的方案。傳統的快速顯示更新的方式只適合捕獲低速邊沿上發生的頻繁事件，而TriggerScan則善于發現快速邊沿速率上的偶發事件。
力科 LeCroy Wavepro 7Zi-A示波器WaveScan高級搜索和分析功能可以發現一般觸發不能定位的問題
即使是最優秀的觸發技術也不能找到所有偶發事件，而工程師往往需要這一個功能。WaveScan 可以定位一次捕獲中的異常事件（即捕獲和搜索）或在長時間、多次采集的數據中掃描一個事件?？梢赃x擇20多種搜索模式（頻率、上升時間、占空比等），應用搜索條件，開始搜索。在找到事件時，WaveScan會在屏幕上高亮顯示錯誤，并以列表方式顯示這些錯誤。
力科LeCroy WavePro 715Zi-A    (1.5 GHz Bandwidth, 4 Input Channels, 20 GS/s on 2 Ch Max Sample Rate)
力科LeCroy WavePro 725Zi-A    (2.5 GHz Bandwidth, 4 Input Channels, 40 GS/s on 2 Ch Max Sample Rate)
力科LeCroy WavePro 735Zi-A   (3.5 GHz Bandwidth, 4 Input Channels, 40 GS/s on 2 Ch Max Sample Rate)
力科LeCroy WavePro 740Zi-A   (4 GHz Bandwidth, 4 Input Channels, 40 GS/s on 2 Ch Max Sample Rate)
力科LeCroy WavePro 760Zi-A   (6 GHz Bandwidth, 4 Input Channels, 40 GS/s on 2 Ch Max Sample Rate)

力科 LeCroy Wavepro 7Zi-A示波器可選配的混合信號測試方案(4+36)
使用MSO邏輯分析選件可以使示波器具備混合信號測試功能。該組件通過力科的LBUS與示波器連接，以方便快捷的方式提供多達36條數字通道，這些數字波形和模擬波形在時間上同步。MSO選件不需要浪費時間來學習如何連接、同步或操作，MSO已經完全集成了這些操作。除捕獲數字信號，他們還能監測低速串行數據信號，如時鐘，數據和片選信號，從而把模擬通道節省下來用于高速信號測試。
力科 LeCroy Wavepro 7Zi-A示波器采集內存的領導者
力科能夠做到長時間采集的數據無縫存入采集存儲器，易于使用。7Zi系列示波器專有的X - Stream II流線式結構支持捕捉，放大，測量和分析多個多達256 Mpts存儲深度的波形，你將體驗到比現今示波器快10到20倍的性能。無論是查看捕獲到的信號或是對多個波形進行統計分析、跟蹤頻率或者識別復雜數據序列，WavePro7Zi都能勝任。
力科 LeCroy Wavepro 7Zi-A示波器瞬時響應能力
在第一次使用Zi 示波器時，您會體會到前所未有的響應能力。采集最長記錄長度的波形并做最復雜的波形分析，均可很容易地在同一時間內進行，您可使用前面板或鼠標、觸摸屏來操作示波器。
力科 LeCroy Wavepro 7Zi-A示波器X-Stream II Architecture架構優化的快速吞吐量
X -Sream II技術設計是為長存儲器操作和響應能力設計的，即使當示波器正在執行多個100 Mpts的波形時也能實現高數據吞吐量。它不需要在長存儲和快速處理之間進行權衡。 WavePro7Zi專有的X-Stream架構在英特爾?Core?2四核處理器（12 GHz的有效時鐘速率），高速串行數據總線，Windows7 64位操作系統和8GB內存的支撐下，性能更強大。
力科 LeCroy Wavepro 7Zi-A示波器通過將波形分段成多個可變長度，大大提高了CPU緩存的效率。WavePro 7Zi對長存儲數據進行快速處理，其它示波器快-10- 20倍。
力科 LeCroy Wavepro 7Zi-A示波器通過動態分配緩存以實現存儲器利用效率最大化，WavePro7Zi系列實現了快速的前面板響應能力。波形預覽在顯示臨時計算結果的時候，如果停止當前處理過程，內置的進程將快速改變當前設置，無需冗長計算就能快速重新定位和縮放新的波形。
力科 LeCroy Wavepro 7Zi-A示波器數字濾波器軟件包（WPZi- DFP2）讓您實現有限或無限沖激響應濾波器，以消除不需要的頻譜成分，如噪音，或者觀察重要的頻率分量。您可以選擇標準的FIR 或IIR濾波器，也可以自己設計過濾器參數。
力科 LeCroy Wavepro 7Zi-A示波器頻譜分析軟件包（WPZi-SPECTRUM）可以使示波器像頻譜分析儀那樣操作，調整頻率范圍，分辨率和中心頻率。并能對信號進行濾波以實時查看頻率特性的變化。另外一個獨特的功能是把頻率峰值點的頻率值和功率以表格形式列出來，點擊表格中的內容即可顯示對應的峰值。
力科 LeCroy Wavepro 7Zi-A示波器Mixed Signal Oscilloscope Option (MS-250/MS-500)混合信號選項可以把WavePro 7Zi 轉換成擁有最多36條數字通道的混合信號示波器，這些通道的采樣率可以高達2GS/s,每條通道達到50Mpts.擁有最多36個數字輸入及時間同步的4條模擬通道，擴大了示波器的用途，提供了完整的系統視圖。
力科 LeCroy Wavepro 7Zi-A示波器專用定時參數可以測量各種信號上的周期抖動、周期間抖動、半周期抖動、寬度抖動。通過抖動的三種視圖（統計、時間和頻率），可以幫助了解根本原因、調試問題。直方圖功能可用于了解統計分布。追蹤功能可以顯示時間相關的抖動峰值，并能和其它信號相比較。FFT功能可以幫助發現電路中高頻抖動的根本原因。
力科 LeCroy Wavepro 7Zi-A示波器主要規格
帶寬 1.5 - 6 GHz
起步價 $24,990
標準記錄長度  20 Mpts/ch
最大記錄長度 256 Mpts/ch
最高采樣率 40 GS/s
力科 LeCroy Wavepro 7Zi-A示波器選項：
WPZi-A-S-32
32 Mpt/Ch (64 Mpt/Ch Interleaved) Memory Option for WavePro Zi-A.
WPZi-A-M-64
64 Mpt/Ch (128 Mpt/Ch Interleaved) Memory Option for WavePro Zi-A.
WPZi-A-L-128
128 Mpt/Ch (256 Mpt/Ch Interleaved) Memory Option for WavePro Zi-A.
Sampling Rate Options
WPZi-1.5GHz-4X20GS
20 GS/s (40 GS/s Interleaved) Sampling Rate Option for 1.5 GHz WavePro Zi
High Speed Output Accessories
LSIB-1
High speed PCIe Gen1 x4 digitizer output for LeCroy oscilloscope. Half-height card with custom connector
LSIB-HOSTBOARD
PCI Express x4 Host Interface Board for desktop PC
LSIB-HOSTCARD
PCI Express x1 Express Card Host Interface for laptop Express Card slot
LSIB-CABLE-3M
PCI Express x 4 3-meter cable with x4 cable connectors included
LSIB-CABLE-7M
PCI Express x 4 7-meter cable with x4 cable connectors include
Serial Data Analysis
WPZi-CBL-DE-EMBED
Remove cable effects from your measurements
WPZi-SDAII
SDA II Serial Data Analysis Option
WPZi-EYEDRII
Eye Doctor II Advanced Signal Integrity Tools for WavePro 7 Zi Oscilloscopes, SDA 7 Zi Serial Data Analyzers, and DDA 7 Zi Disk Drive Analyzers
Serial Data Compliance
QPHY-MIPI-DPHY
QualiPHY Enabled MIPI D-PHY Software Option
QPHY-DDR2
QualiPHY DDR2 Compliance Software Option
QPHY-DDR3
QualiPHY Enabled DDR3 Software Option
QPHY-ENET
QualiPHY Ethernet Application Software
QPHY-HDMI
QualiPHY Enabled HDMI Software Option (TF-HDMI-3.3V-QUADPAK required;WavePro 760Zi requires SDA II option)
QPHY-LPDDR2
QualiPHY LPDDR2 Compliance SW
QPHY-PCIe
QualiPHY Enabled PCIe Software Option (for Gen1 and Gen2 testing)
QPHY-SATA-TSG-RSG
QualiPHY Enabled SATA Software Option
QPHY-USB
USB Application Software Package
QPHY-UWB
WiMedia UWB Transmitter Measurement Software Option
ENET-2ADA-BNCSMA
2 x BNC to SMA Adapter
ENET-2CAB-SMA018
2 x 18 inch SMA to SMA Cable
ENET-2CAB-SMA036
2 x 36 inch SMA to SMA Cable
WPZi-SDM
Serial Data Mask Software Package for WavePro Zi Series
Computer Upgrade
WPZi-2-UPG-8GBRAM
Upgrade from 2 GB to 8 GB CPU RAM
WPZi-4-UPG-8GBRAM
Upgrade from 4 GB to 8 GB CPU RAM
GPIB-2
GPIB Option for LeCroy oscilloscope. Half-height card with custom connector.
WPZi-500GB-HD
Upgrade from standard size hard drive to 500 GB hard drive
WPZi-160GB-RHD-02
Additional 160 GB Hard Drive for WPZi. Includes Windows Vista OS, LeCroy oscilloscope software and critical scope operational file duplicates.
WPZi-500GB-RHD-02
Additional 500 GB Hard Drive for WPZi. Includes Windows Vista OS, LeCroy oscilloscope software and critical scope operational file duplicates.
Serial Trigger and Decode
WPZi-FCbus D
FibreChannel decode annotation option for WavePro 7Zi series
WPZi-SASbus D
SAS Decode annotation option for WavePro 7Zi series
WPZi-SATAbus D
SATA Decode annotation option for WavePro 7Zi Series Supports SATA Gen 1, 2, and 3
WPZi-1553 TD
MIL-STD-1553 Trigger and decode option for WavePro Zi
WPZi-8B10B D
8b10b Decode Option for WavePro Zi Series Oscilloscopes
WPZi-ARINC429bus DSymbolic
ARINC 429 Bus Symbolic Decode option for WavePro Zi
WPZi-AudioBus TD
AudioBus Trigger and decode Option for WavePro 7Zi
WPZi-AudioBus TDG
AudioBus Trigger, decode, and Graph Option for WavePro 7Zi
WPZi-CANbus TD
CAN Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-CANbus TDM
CAN Bus Trigger, Decode, and Measure Option for WavePro Zi Series Oscilloscopes
WPZi-DigRF3Gbus D
DigRF 3G Bus Decode option for WavePro Zi
WPZi-DPHYbus D
D-PHY Bus Decode option for WavePro Zi
WPZi-FlexrayBus TD
FlexRay Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-FlexRayBus TDP
FlexRay Bus Trigger, Decode, and Physical Layer Test Option for WavePro Zi Series Oscilloscopes
WPZi-HSPT
50 Mb/s to 3.125 Gb/s High Speed Serial Trigger Option for 4-6 GHz Oscilloscopes & Disk Drive Analyzers
WPZi-I2Cbus TD
I2C Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-LINbus TD
LIN Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-MSPT
50 Mb/s to 1.25 Gb/s Medium Speed Serial Trigger Option for 2.5-3.5 GHz Oscilloscopes & Disk Drive Analyzers
WPZi-PCIEbus D
PCI Express (Gen 1.x, 2.0, and 3.0) Protocol Link Layer Decode Annotation for WavePro 7 Zi Series Oscilloscopes and Analyzers
WPZi-PROTObus MAG
Serial Debug Toolkit - Measure Analyze Graph for WavePro Zi
WPZi-ProtoSync
Decode Annotation and Protocol Analyzer Software Synchronization Option for WavePro 7Zi/Zi-A
WPZi-ProtoSync-BT
Decode Annotation and Protocol Analyzer + Bit Tracer Software Synchronization Option for WavePro Zi/Zi-A
WPZi-SPIbus TD
SPI Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-UART-RS232bus TD
UART and RS232 Bus Trigger & Decode Option for WavePro Zi Series Oscilloscopes
WPZi-USB2bus D
USB 2.0 Bus Decode option for WavePro Zi
WPZi-USB3bus D
USB 3.0 Decode option for WavePro Zi
Jitter Analysis Software
WPZi-JITKIT
Clock, clock-data Jitter Analysis and views of time, statistical, spectral, and jitter overlay
Synchronize Oscilloscope Options
Zi-8CH-SYNCH
HW Kit to allow combination of channels from two 8Zi oscilloscopes
Miscellaneous
KYBD-1
Keyboard
WPZi-HARDCASE
Hard carrying case for all WavePro Zi Series oscilloscopes
WPZi-SOFTCASE
Soft carrying case for all WavePro Zi Series oscilloscopes
RACKMOUNT-1
Rack-mount accessory for converting a WavePro Zi series oscilloscope to an 8U rack-mounted package
ZI-EXTDISP-15
Top-mounted, Fully Integrated 15.3" WXGA with Touch Screen Display, Including all Cabling and Software
TTL-AUX-OUT
Accessory for Zi oscilloscopes to enable TTL level output from the Aux Out connector

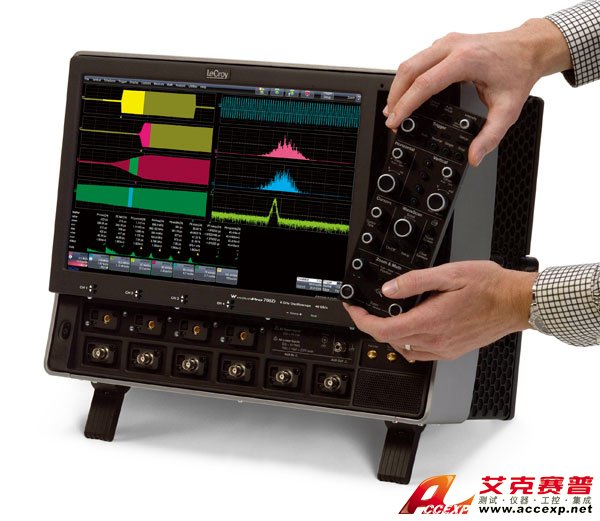

Zi-FrontPanel
Removable front panel for WavePro 7Zi and WaveMaster 8Zi Oscilloscopes
Zi-FrontPanel-4Ch
Removable front panel with 4 independent channel controls for WavePro 7Zi and WaveMaster 8Zi Oscilloscopes
Rise-Time-Filter-100ps
Low-Pass Rise Time Filter 100 ps
Rise-Time-Filter-150ps
Low-Pass Rise Time Filter 150 ps
20dB-SMA-Attenuator
20 dB Attenuator
Other Software Options
WPZi-SPECTRUM
Spectrum Analyzer and Advanced FFT Option for WavePro Zi Series
WPZi-EMC
EMC Pulse Parameter Software Package for WavePro Zi Series
WPZi-ET-PMT
Electrical Telecom Pulse Mask Test Package for WavePro Zi Series
Data Storage Software
WPZi-AORM
Advanced Optical Recording Measurement Package for WavePro Zi Series
WPZi-DDM2
Disk Drive Measurements Software Package for WavePro Zi Series
Power Analysis Software
WPZi-PMA2
Power Measure Analysis Software Package
Digital Filtering Software
WPZi-DFP2
Digital Filter Software Package for WavePro Zi Series
Mixed Signal Solutions
MS-500
500 MHz Maximum Input Frequency, 18 Channels, 50 Mpts/ch Mixed Signal Oscilloscope Option
MS-500-36
250 MHz Maximum Input Frequency, 36 Channels, 25 Mpts/ch Mixed Signal Oscilloscope Option
MS-250
250 MHz Maximum Input Frequency, 18 Channels, 10 Mpts/ch Mixed Signal Oscilloscope Option
Mixed Signal Accessories
PK400-1
Large gripper probe set for 0.10'' (2.54 mm) pin pitch, includes 10 probes with color-coded leads
PK400-2
Medium gripper probe set for 0.04'' (1.0 mm) pin pitch, includes 10 probes with color-coded leads
PK400-3
Small gripper probe set for 0.008'' (0.2 mm) pin pitch, includes 10 probes with color-coded leads
MSO-MICTOR
Mictor Cable, D0-D35
MSO-3M
3M Interconnect Cable, D0-D17 or D18-D35
Serial Data Test Fixtures
TF-DSQ
Probe Deskew and Calibration Fixture
TF-ENET-B
10/100/1000Base-T Compliance Test Fixture
TF-ET
Telecom Adaptor Kit 100Ω, 120Ω, 75Ω
TF-HDMI-3.3V-QUADPAK
HDMI Pull-Up Terminator Quad Pack – for Use with the Efficere ET-HDMI-TPS-S Test Fixture
TF-SATA-C
SATA Compliance Test Fixture (*WavePro 7 Zi and WaveMaster 8 Zi class oscilloscopes require the SDA II software option; **20M memory required)
TF-SATA-C-Kit
SATA Compliance Test Kit (*WavePro 7 Zi and WaveMaster 8 Zi class oscilloscopes require the SDA II software option; **20M memory required)
TF-USB-B
USB 2.0 Testing Compliance Test Fixture
美國力科 LeCroy Wavepro 7Zi-A示波器可選探頭：
ZS1500-QUADPAK
Set of 4 ZS1500 Active Probes
ZS1000-QUADPAK
Set of 4 ZS1000 Active Probes
ZS1500
1.5 GHz, 1 MΩ, 0.9 pF Active Probe
ZS1000
1 GHz, 1 MΩ, 0.9 pF Active Probe
HFP2500
2.5 GHz Active Voltage Probe
Current Probes
CP030
30 Amps, 50 MHz BW Current Probe - AC/DC , 50 Amp Peak Pulse
CP031
30 Amps, 100 MHz BW Current Probe - AC/DC , 50 Amp Peak Pulse
AP015
30 Amps, 50MHz BW Current Probe - AC/DC, 50 Amp Peak Pulse
CP150
150 Amps, 10 MHz BW Current Probe - AC/DC , 500 Amp Peak Pulse
CP500
500 Amps, 2 MHz BW Current Probe - AC/DC , 700 Amp Peak
DCS015
Deskew Calibration Source for AP015
Differential Amplifiers
DA1855A
DA1855A, 100 MHz Differential Amplifier with fast over drive recovery, calibrated offset, and selectable LP filters
DXC100A
DXC100A, Selectable ÷100 or ÷10 , Passive Differential Probe Pair for DA18xxA series
DXC200
÷1,50 MHz low capacitance Passive Differential Probe Pair for DA18xxA series
DXC-5100
÷100 2.5KV Passive High Voltage Probe Pair for DA18xxA series. Requires DA101 for full performance
DA101
÷10 1MOhm Passive Attenuator for DXC series probes
DA1855A-PR2
2 Ch, 100 MHz Differential Amplifier with fast over drive recovery, calibrated offset, and selectable LP filters
DA1855A-PR2-RM
Rack mountable version of the DA1855A-PR2
DA1855A-RM
DA1855A with rackmount
Differential Probes
WL-PLink
WaveLink ProLink probe body >3.5 GHz
WL-Pbus
WaveLink ProBus probe body = 3.5 GHz
D600A-AT
WaveLink 7.5 GHz Differential Probe with Adjustable Tip Module
D300A-AT
WaveLink 4 GHz Differential Probe with Adjustable Tip Module
D620
WaveLink 6 GHz Differential probe module 5V
D610
WaveLink 6 GHz Differential probe module 2.5V
D420
WaveLink D320 3.5 GHz/5Vp-p and +/-3V Offset Range Differential Amplifier Small tip Module
D410
WaveLink D410 4 GHz/2.5Vp-p and +/-3V Offset Range Differential Amplifier Small tip Module
D320
WaveLink 3.5 GHz Differential probe module 5V
D310
WaveLink 3.5 GHz Differential probe module 2.5V
D620-PT
WaveLink D620 6 GHz/5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx20-PT Adjustable Positioner Tip. 4.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D610-PT
WaveLink D610 6 GHz/2.5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx10-PT Adjustable Positioner Tip. 2.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D500PT
WaveLink 6 GHz Differential Positioner Mounted Tip Module
D420-PT
WaveLink D420 4 GHz/5Vp-p & +/-3V Offset Range Differential Amplifier Small Tip Module w/Dx20-PT
D410-PT
WaveLink D410 4 GHz/2.5Vp-p & +/-3V Offset Range Differential Amplifier Small Tip Module w/Dx10-PT
D320-PT
WaveLink D320 3.5 GHz/5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx20-PT Adjustable Positioner Tip. 4.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D310-PT
WaveLink D310 3.5 GHz/2.5Vp-p and +/-3V Offset Range Differential Amplifier Small Tip Module with Dx10-PT Adjustable Positioner Tip. 2.8 mVrms (typical) probe + scope noise. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
D600ST
WaveLink 7 GHz Differential Probe with Small Tip Module (includes D6000ST-SI, D600ST-QC, D600ST-SP)
D350ST
WaveLink 4 GHz, 5 V Differential with Small Tip Module
ZD1500
1.5 GHz, 1.0 pF Active Differential probe
ZD1000
1 GHz, 1.0 pF Active Differential probe
ZD500
500 MHz, 1.0 pF Active Differential probe
Dx20-PT-KIT
WaveLink Dx20-PT Adjustable Positioner Tip Kit. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins (Qty. 4)/Sockets(Qty. 2).
Dx10-PT-KIT
WaveLink Dx10-PT Adjustable Positioner Tip Kit. Includes XYZ Positioner Assembly with Mechanical Interconnects, Adhesive Kit, Connection Guides, Hand-held Wand, and Replacement Pins(Qty. 4)/Sockets(Qty 2).
AP034
1 GHz Active Differential Probe
AP033
500 MHz Active Differential Probe
High Voltage Probes
PPE1.2KV
10:1/100:1 200/300 MHz 5M Ohm/50M Ohm
PPE2KV
100:1 400 MHz 50M Ohm High Voltage Probe
PPE4KV
100:1 400 MHz 50M Ohm High-Voltage Probe
PPE5KV
100:1 400 MHz 50M Ohm High-Voltage Probe
PPE6KV
1000:1 400 MHz 50M Ohm High-Voltage Probe
PPE20KV
1000:1 100 MHz 100M Ohm High-Voltage Probe
High Voltage Differential Probes
AP031
15 MHz Differential Probe
ADP300
High-Voltage Active Differential Probe
ADP305
High-Voltage Differential Probes From LeCroy
Optical Probes
OE425
Short wavelength O/E Converter (500-870 nm)
OE455
Long wavelength O/E Converter (950-1630 nm)
OE525
Short wavelength O/E Converter (500-870 nm)
OE555
Long wavelength O/E converter
Probe Parts and Kits
PACC-ZD001
Y Lead adapter, qty 1
PACC-ZD002
Solder in lead, qty 2
PACC-ZD003
Long spring ground, qty 2
PACC-ZD004
Tip Saver, qty 2
PACC-ZD005
Swivel tip adapter
PACC-ZD006
Small IC adapter, qty 2
PACC-ZD007
Micro pogo pin tip, qty 6
LPA-SMA-KIT-A
Kit of Pro-Link to SMA Adapter, new style
LPA-SMA-A
Pro-Link to SMA Adapter, new style
Dxx0-Cable-HiTemp
Replacement 30" matched cable set for use with HiTemp Solder tip leadset
Dx20-SP
Replacement Square Pin lead set for D320/D620
Dx20-SI
Replacement Solder tip lead set for D320/D620
Dx20-SI-HiTEMP
Replacement Solder tip leadset for use with D620/D320 and temperature extension cables
Dx20-QC
Replacement Quick Connect lead set for D320/D620
Dx20-PT
Replacement Dx20-PT Tip with Qty. 4 Pogo Pin Tips and Qty. 2 Sockets
Dx20-HiTEMP
WaveLink Temperature extension cables for Dx20. Includes 1 set of matched 30" high temp cables, 1 solder tip leadset.
Dx10-SP
Replacement Square Pin lead set for D310/D610
Dx10-SI
Replacement Solder tip lead set for D310/D610
Dx10-SI-HiTEMP
Replacement Solder tip leadset for use with D610/D310 and temperature extension cables
Dx10-QC
Replacement Quick Connect lead set for D310/D610
Dx10-PT
Replacement Dx10-PT Tip with Qty. 4 Pogo Pin Tips and Qty. 2 Sockets
Transmission Line Probes
PP066
7.5 GHz Low Capacitance ÷10/÷20 probe
